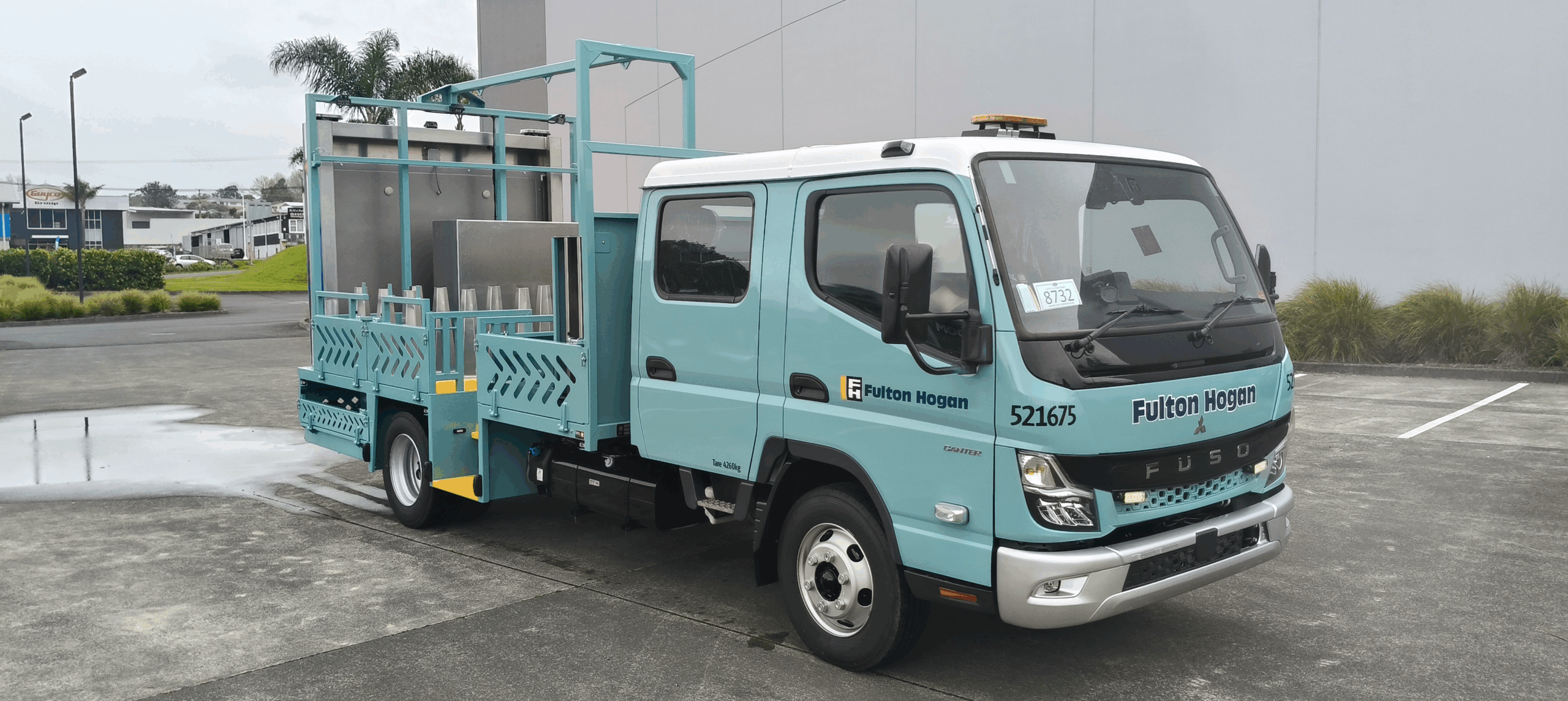

FULTON HOGAN NORTHLAND LEVEL 1 TRAFFIC MANAGEMENT UNIT
TO SUIT A FUSO CANTER 918G CREW CAB 4X2 TRUCK
Contact numbers
- Ten4 service: Ph (09) 470 0850

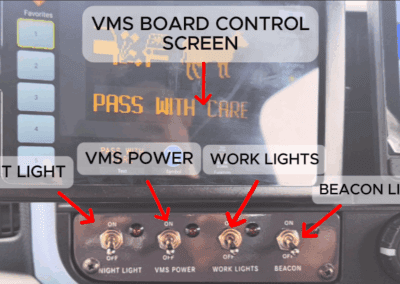

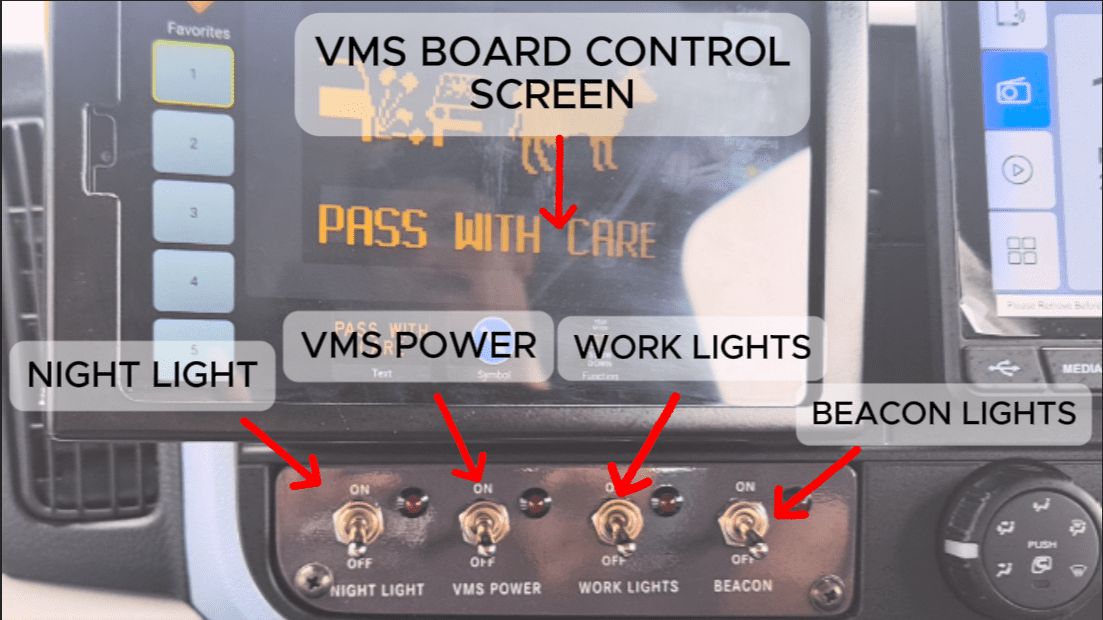

CONTROL PANEL GUIDE
CONTROL PANEL
specifications as follows
- Overall approximate measurements – (4030mtrs long x 2.2mtrs wide).
- 75 x 75 x 3mm SHS main sub frame.
- 75 x 40mm Corten channel cross members – attached on top of sub frame runners.
- 3mm Corten steel decking.
- 3mm Corten steel folded coming rails.
- 50 x 50 x 3mm SHS front mounted headboard frame with 2mm electrogalv steel infill at 1200mm high.
- 75 x 50 x 3mm RHS rear mounted tailboard frame.
- Sign blade storage rack bolted to deck behind front headboard.
- 2 x level 1 signpost storage racks – LHS recessed into deck ahead of access steps & RHS stored on top of deck.
- Signpost feet storage area mounted on top of deck behind sign rack with fixed rear divider.

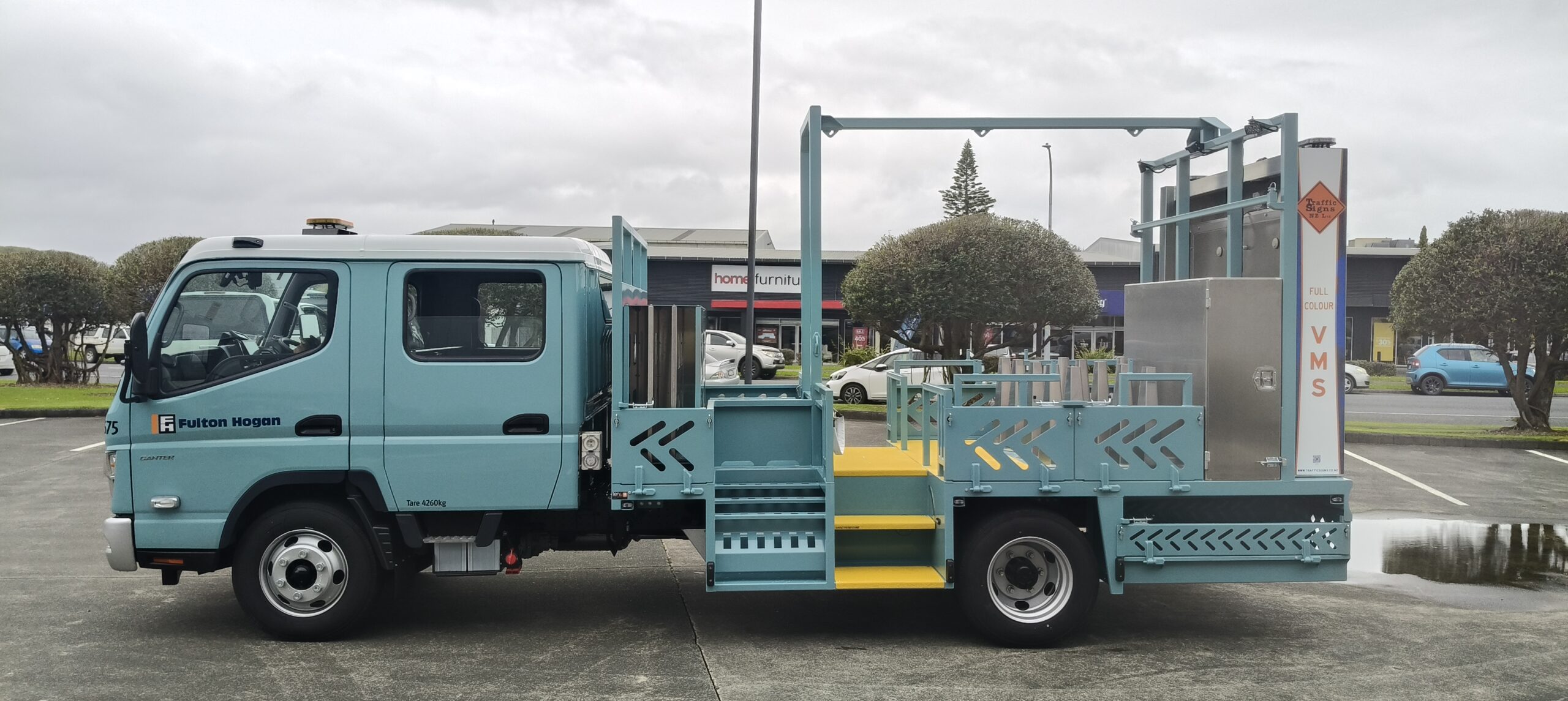

- Left- and right-hand steel access wells with hinged down steps – behind feet storage racks with yellow safety step.
- 40 x 40 x 3mm SHS handrails at either side of access wells with clip on restraint straps for coning out.
- 12 x relocatable cone storage stands bolted at rear of deck ahead of tailboard.
- 65 x 65 x 5mm SHS harness rail with 5 x anchorage points rated to AS/NZ Standard 1891.4
- Pressed 3mm electrogalv steel profile cut sideboards divided into each working station.
- Relocatable cone restraint bar with locator pins mounted on top of sideboards to suit each division with locking pins – plus storage for restraint bar on rear tailboard. (need ground clearance when folded down)
- Mounting provision for electrical components with cable securing rods.
- 2mm electrogalv steel rear lower bumper with provision for taillights & number plate.
- 1 x per side rear underbody profile cut 2mm electrogalv steel sandbag storage cages with hinged doors.
- Pressed 3mm corten steel mudguards with mud flaps.
- Aluminium E – Stop storage box mounted at rear of deck, LHS access only.
- Sandblasted, primed and painted FH blue with yellow safety step tread on walkway areas.
electrical components:

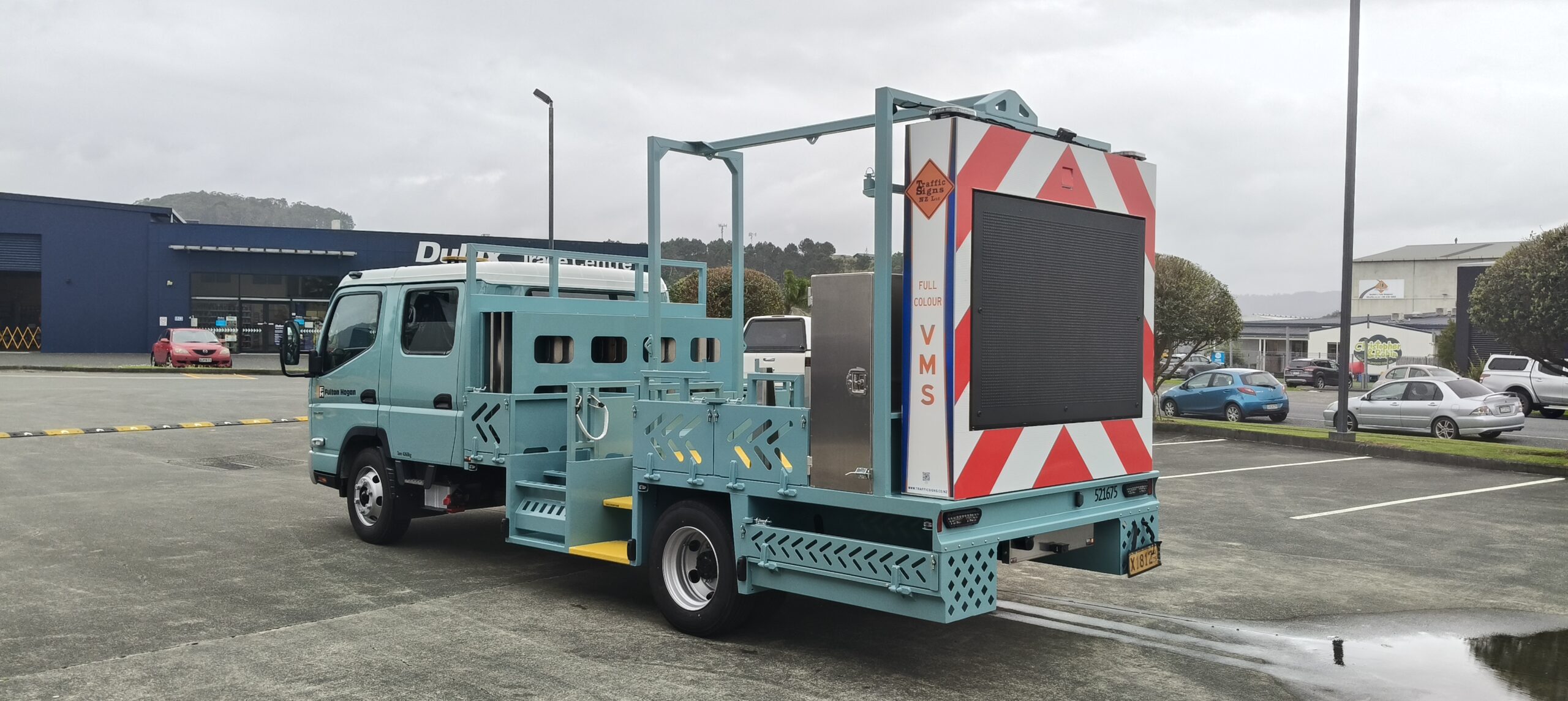

- 1 x Traffic signs full colour VMS Level 1 arrow board-fixed mounted to rear headboard with charging batteries mounted in rear of chassis.
- VMS charging unit mounted at front LHS of deck.
- Issue of 240volt electrical certification.
- Viewtech full CCTV camera system – deck, rear and forward facing – live at all times.
- 2 x JW combination taillights with protectors.
- 1 x per side deck access well flush mount lights.
- 2 x rear headboard mounted rotating beacon lamps.
- 2 x rear headboard mounted forward facing work lamps.
- 3 x per side outline markers.
- 1 x number plate lamp.
- 1 x battery isolator switch.
- Cab mounted control switches for beacon and work lights.
- LED Day time running lights mounted on front grill
- LED strip lights in sandbag boxes.
- Night light with cab operated switch.
truck mandatories:
- Light Bar (Hella). Hella MLB200 light bar (400mm long, Amber lens) set to Flash Pattern 21, ECE R65 compliant pattern, mounted to cab roof on alloy mount.
- EROAD Ehubo2 Premium device fitted to vehicle.
- FH vehicle livery including asset number & tare weight.
- Wheel chocks & holder.
- Supply Wiring schematic.
- AI reverse camera system fitted with secondary cab mounted screen & programmed to activate reverse beeper when human & vehicles are identified.
- AI reverse camera system fitted with secondary cab mounted screen & programmed to activate reverse beeper when human & vehicles are identified.
- Mounting of Fuso Supplied reverse camera.
- Connection of reverse package to Fuso provided connection point.
- Reversing Alarm – Digital self-adjusting Broadband type 77 – 97dBA, 12-24 volt. Rear sense SA-RRA97 or equivalent.
- 12/24V jump start terminals mounted on passenger side.
- Lockable battery Isolating Switch. Cole Hersee Co 75920BX master switch (RED) and mounting bracket (ACX3405).
- Battery Isolating Switch Bypass for EROAD and Night light.
- Issue of operator’s procedure manuals.
- Carry out handover.
